inteliLIGHT® LTE-M compatible streetlighting remote management

InteliLIGHT communication technology_LTE-M

LTE-M is a low power wide area (LPWA) technology standard published by 3GPP. It supports IoT through lower device complexity and extended coverage, while allowing the reuse of the LTE installed base. Supported by all major mobile equipment, chipset and module manufacturers, LTE-M networks will co-exist with 2G, 3G, and 4G mobile networks and benefit from all the security and privacy features of carrier-grade networks.

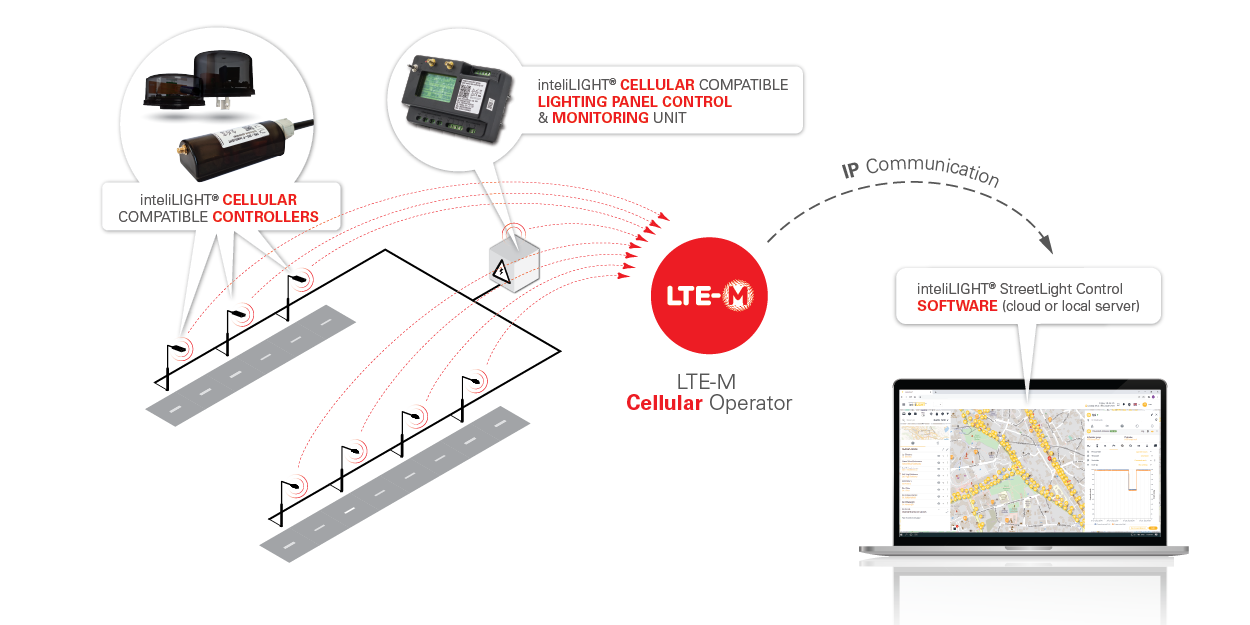

inteliLIGHT® LTE-M compatible system architecture

inteliLIGHT® LTE-M compatible system components

inteliLIGHT® LTE-M compatible controllers

Enables individual remote management of streetlight lamps with electronic ballast up to 400W.
Specially designed and optimized for LTE-M LPWA networks.
Autonomous operation based on predefined schedules, light level sensor and adaptive lighting.
Bandwidth efficient with minimal communication requirements.
Adaptive lighting capabilities based on digital input for motion sensing.
Dedicated high-security memory for encryption keys storage.
Wide range of electrical parameters monitoring: V, W, A, VAR, Wh, VARh, PF and frequency.
Advanced data synchronization and notification mechanism.
Battery operated RTC, protected against unforeseen communication failure.
External infrared interface for local configuration.
Integrated light level sensor
Over The Air (OTA) firmware update

inteliLIGHT® FRE-220-NEMA-M1 LTE-M compatible luminaire controller

inteliLIGHT® FRE-220-NEMA-M1 LTE-M compatible luminaire controller

The NEMA socket (ANSI C136.41) retrofitting version designed for carrying out the remote management of a luminary in street lighting installations with lamps using electronic ballast up to 500W, with 0-10V (220) or DALI (220D) control interface.

inteliLIGHT® FRE-24-ZHAGA-M1 LTE-M compatible luminaire controller

inteliLIGHT® FRE-24-ZHAGA-M1 LTE-M compatible luminaire controller

Plug-and-play upgrade for lamps compatible with Zhaga socket (book 18) with full lamp management and feedback functionality.

inteliLIGHT® FRE-220-M-M1 embedded LTE-M compatible luminaire controller

inteliLIGHT® FRE-220-M-M1 embedded LTE-M compatible luminaire controller

Unprecedented intelligence for any street lighting fixture, right from the production line. Designed to minimize occupied space, the controller can be embedded into most luminaire designs, allowing any producer to offer LTE-M ready smart lighting fixtures.

inteliLIGHT® FRE-220-P-M1 inside pole LTE-M compatible luminaire controller

inteliLIGHT® FRE-220-P-M1 inside pole LTE-M compatible luminaire controller

With its IP66 protection rating and compact dimensions, the controller can be installed directly into the lighting pole, making it less visible from an aesthetic point of view and allowing easier access for deployment teams.

inteliLIGHT® LTE-M compatible lighting panel control & monitoring

Provides remote ON/OFF lighting panel operation and to carry out measurements and analysis of different parameters in street lighting grids. Under/ overpower monitoring, voltage monitoring, phase failure and daytime/nighttime consumption mismatches are reported in real-time to the central server.

inteliLIGHT® FRCM-M1 compatible lighting panel control & monitoring unit

inteliLIGHT® FRCM-M1 compatible lighting panel control & monitoring unit

Installed inside the feeder pillar, it is designed to provide autonomous operation for street lighting installations and carries out three phase measurements and analysis of electrical parameters in street lighting grids.

LTE-M GSM Operator

This reliable, carrier-grade IoT communications technology is already seriously taken into consideration by large GSM operators as Telekom, Vodafone or Orange. As the standardization process progresses, more GSM operators will offer LTE-M connectivity and it is expected for this technology to reach unprecedented penetration throughout the world.
